Chinese Threat Actor Scarab Targeting Ukraine

Executive Summary

• Ukraine CERT (CERT-UA) has released new details on UAC-0026, which SentinelLabs confirms is associated with the suspected Chinese threat actor known as Scarab.
• The malicious activity represents one of the first public examples of a Chinese threat actor targeting Ukraine since the invasion began.
• Scarab has conducted a number of campaigns over the years, making use of a custom backdoor originally known as Scieron, which may be the predecessor to HeaderTip.
• While technical specifics vary between campaigns, the actor generally makes use of phishing emails containing lure documents relevant to the target, ultimately leading to the deployment of HeaderTip.

UAC-0026

On March 22nd 2022, CERT-UA published alert #4244, where they shared a quick summary and indicators associated with a recent intrusion attempt from an actor they dubbed UAC-0026. In the alert, CERT-UA noted the delivery of a RAR file archive "Про збереження відеоматеріалів з фіксацією злочинних дій армії російської федерації.rar", which translates to “On the preservation of video recordings of criminal actions of the army of the Russian Federation.rar”. Additionally, they note the archive contains an executable file, which opens a lure document, and drops the DLL file "officecleaner.dat" and a batch file "officecleaner". CERT-UA has named the malicious DLL ‘HeaderTip’ and notes similar activity was recorded in September 2020.

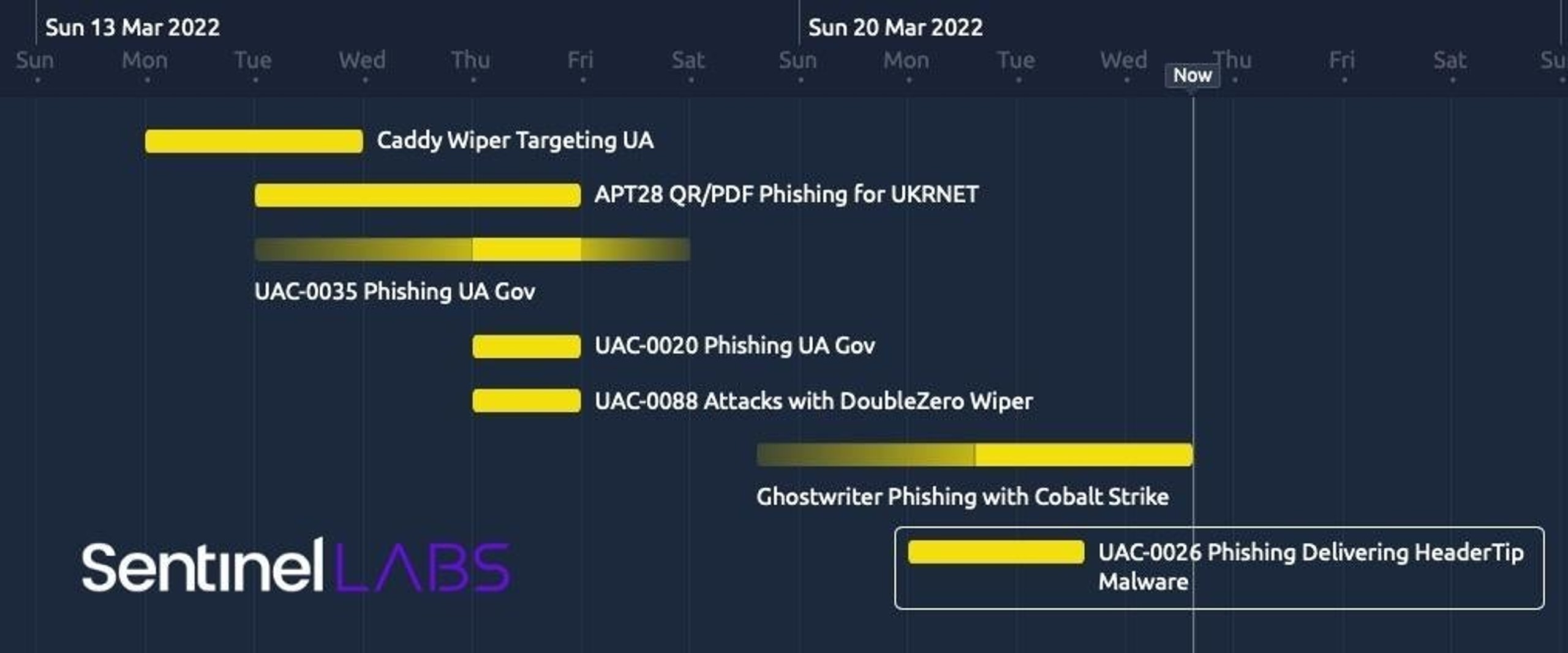

The UAC-0026 activity is the first public example of a Chinese threat actor targeting Ukraine since the invasion began. While there has been a marked increase in publicly reported attacks against Ukraine over the last week or so, these and all prior attacks have otherwise originated from Russian-backed threat actors.

Connection of HeaderTip to Scarab APT

Scarab has a relatively long history of activity based on open source intelligence. The group was first identified in 2015, while the associated IOCs are archived on OTX. As noted in the previous research, Scarab has operated since at least 2012, targeting a small number of individuals across the world, including Russia, United States, and others. The backdoor deployed by Scarab in their campaigns is most commonly known as Scieron.

During our review of the infrastructure and HeaderTip malware samples shared by CERT-UA, we identified relations between UAC-0026 and Scarab APT.

We assess with high confidence the recent CERT-UA activity attributed to UAC-0026 is the Scarab APT group. An initial link can be made through the design of the malware samples and their associated loaders from at least 2020. Further relationships can be identified through the reuse of actor-unique infrastructure between the malware families associated with the groups:

• 508d106ea0a71f2fd360fda518e1e533e7e584ed (HeaderTip – 2021)
• 121ea06f391d6b792b3e697191d69dc500436604 (Scieron 2018)
• Dynamic.ddns[.]mobi (Reused C2 Server)

As noted in the 2015 reporting on Scarab, there are various indications the threat actor is Chinese speaking. Based on known targets since 2020, including those against Ukraine in March 2022, in addition to specific language use, we assess with moderate confidence that Scarab is Chinese speaking and operating under geopolitical intelligence collection purposes.

Lure Documents

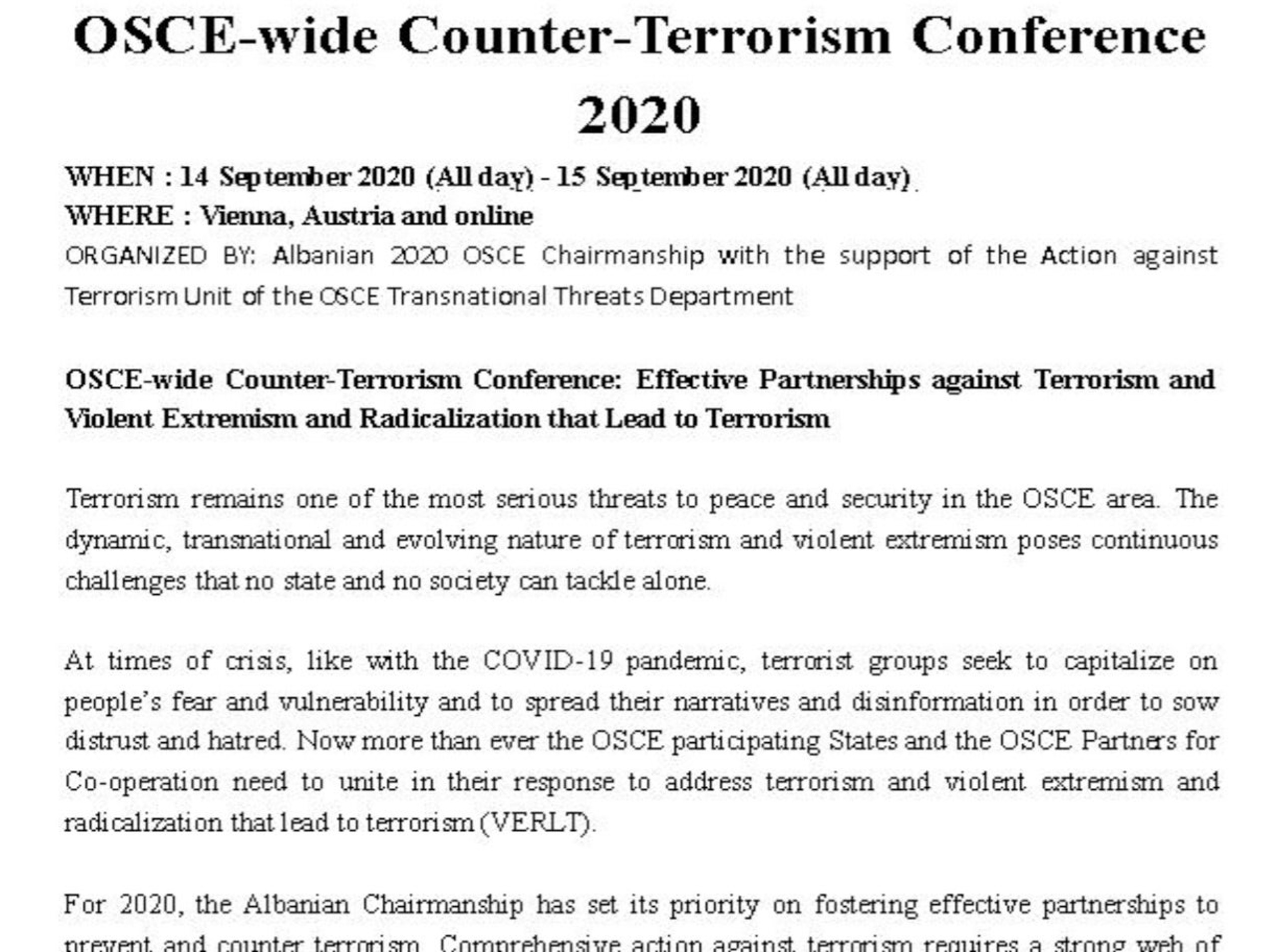

Analysis of lure documents used for initial compromise can provide insight into those being targeted and particular characteristics of their creator. For instance, in a September 2020 campaign targeting suspected Philippines individuals, Scarab made use of lure documents titled “OSCE-wide Counter-Terrorism Conference 2020”. For context, OSCE is the Organization for Security and Co-operation in Europe.

More recently, industry colleagues have noted a case in which Scarab was involved in a campaign targeting European diplomatic organizations during the US withdrawal from Afghanistan.

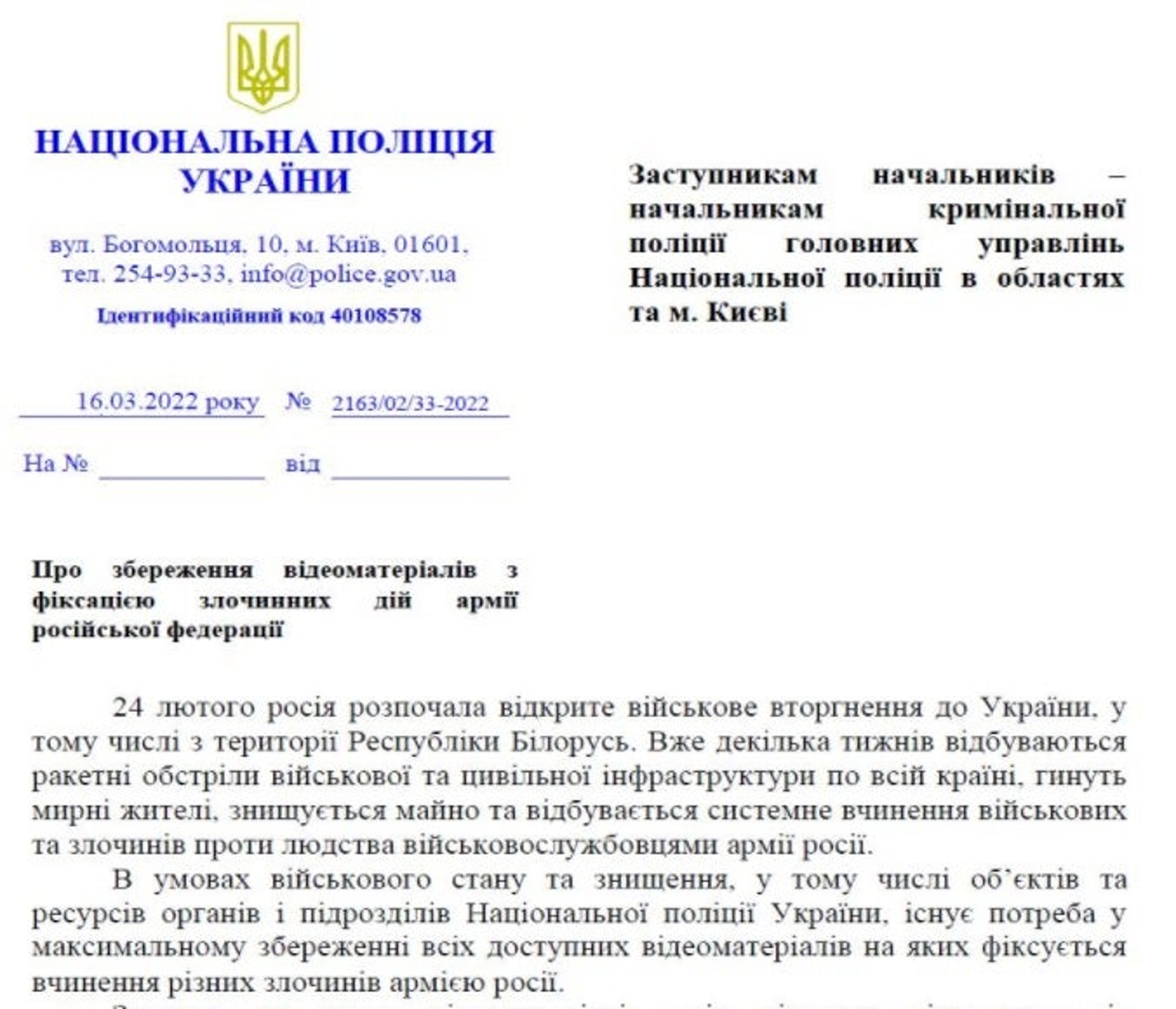

The lure document reported by CERT-UA mimics the National Police of Ukraine, themed around the need to preserve video materials of crimes conducted by the Russian military.

Lure documents through the various campaigns contain metadata indicating the original creator is using the Windows operating system in a Chinese language setting. This includes the system’s username set as “用户” (user).

Malware and Infrastructure

Multiple methods have been in use to attempt to load the malware onto the target system. In the case of the 2020 documents, the user must enable document Macros. In the most recent version from CERT-UA, the executable loader controls the install with the help of a batch file while also opening the lure document. The loader executable itself contains the PDF, batch installer, and HeaderTip malware as resource data.

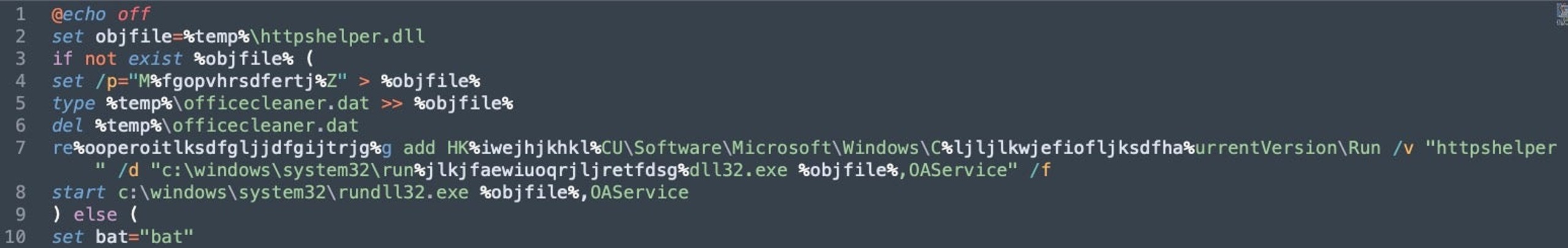

The batch file follows a simple set of instructions to define the HeaderTip DLL, set persistence under HKCU\Software\Microsoft\Windows\CurrentVersion\Run, and then execute HeaderTip. Exports called across the HeaderTip samples have been HttpsInit and OAService, as shown here.

The HeaderTip samples are 32-bit DLL files, written in C++, and roughly 9.7 KB. The malware itself will make HTTP POST requests to the defined C2 server using the user agent: "Mozilla/5.0 (Windows NT 10.0; WOW64; Trident/7.0; rv:11.0) like Gecko". General functionality of HeaderTip is rather limited to beaconing outbound for updates, potentially so it can act as a simple first stage malware waiting for a second stage with more capabilities.

Scarab has repeatedly made use of dynamic DNS services, which means C2 server IP, and subdomains should not be considered related. In fact, some of the dynamic DNS services used by Scarab can easily link one to various unrelated APT groups, such as the infamous CloudHopper report or 2015 bookworm malware blogs. While those may be associated with Chinese APTs, it may indicate more of a standard operating toolkit and approach rather than shared technical resources.

Conclusion

We assess with high confidence the recent CERT-UA activity attributed to UAC-0026 is the Scarab APT group and represents the first publicly-reported attack on Ukraine from a non-Russian APT. The HeaderTip malware and associated phishing campaign utilizing Macro-enabled documents appears to be a first-stage infection attempt. At this point in time, the threat actor’s further objectives and motivations remain unclear.

Indicators of Compromise

IOC
Description


product2020.mrbasic[.]com
March 2022 C2 Server


8cfad6d23b79f56fb7535a562a106f6d187f84cf
March 2022 Ukraine file delivery archive “Про збереження відеоматеріалів з фіксацією злочинних дій армії російської федерації.rar”


e7ef3b033c34f2ac2772c15ad53aa28599f93a51
March 2022 Loader Executable “officecleaner.dat”


fdb8de6f8d5f8ca6e52ce924a72b5c50ce6e5d6a
March 2022 Ukraine lure document “#2163_02_33-2022.pdf”


4c396041b3c8a8f5dd9db31d0f2051e23802dcd0
March 2022 Ukraine batch file “officecleaner.bat”


3552c184281abcc14e3b941841b698cfb0ec9f1d
March 2022 Ukraine HeaderTip sample “httpshelper.dll”


ebook.port25[.]biz
September 2020 C2 Server


fde012fbcc65f4ab84d5f7d4799942c3f8792cc3
September 2020 file delivery archive “Joining Instructions IMPC 1.20 .rar”


e30a24e7367c4a82d283c7c68cff5739319aace9
September 2020 lure document “Joining Instructions IMPC 1.20 .xls”


5cc8ce82fc21add608277384dfaa8139efe8bea5
September 2020 HeaderTip samples based on C2 use


mert.my03[.]com
September 2020 C2 Server


90c4223887f10f8f9c4ac61f858548d154183d9a
September 2020 file delivery archive “OSCE-wide Counter-Terrorism Conference 2020.zip”


82f8c69a48fa1fa23ff37a0b0dc23a06a7cb6758
September 2020 lure document “OSCE-wide Counter-Terrorism Conference 2020”


b330cf088ba8c75d297d4b65bdbdd8bee9a8385c
September 2020 HeaderTip sample”officecleaner.dll”


83c4a02e2d627b40c6e58bf82197e113603c4f87
HeaderTip (Possible researcher)


508d106ea0a71f2fd360fda518e1e533e7e584ed
HeaderTip


dynamic.ddns[.]mobi
C2 Server, overlaps with Scieron (b5f2cc8e8580a44a6aefc08f9776516a)
